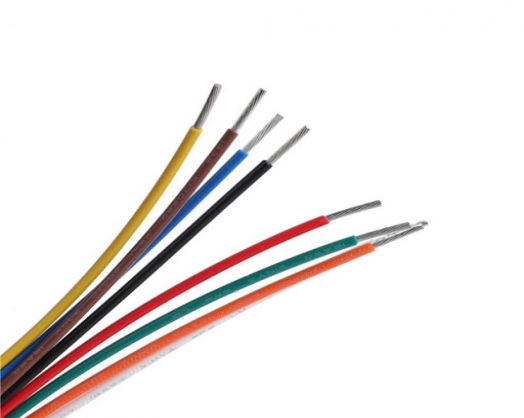

We manufacture PVC flexible wires as well, also known as PVC hookup wire, which finds application in electronic & lighting industry. These cables are manufactured with annealed tinned copper conductor (ATC) or annealed bare copper wire (ABC). The wire is available of desired construction. Parameters like number of cores, number of bunched conductors, diameter of each conductor, outer diameter of the insulation and color of PVC insulation can be customized according to customer requirements.
Specifications for some of the most prevalent wires used in the electronics industry are given below.
|
No. of strands/MM |
No. of Strands/SWG |
Type of Conductor |
Diameter of Single Conductor (mm) |
Overall Diameter (mm) |
|
7/36 |
|
ATC |
0.193 |
1.3 |
|
7/36 |
|
ATC |
0.193 |
1.45 |
|
7/38 |
|
ATC |
0.150 |
1.3 |
|
|
11/0.16 |
ATC |
0.160 |
1.45 |
|
|
17/0.16 |
ATC |
0.160 |
2.85 |
|
|
17/0.16 |
ATC |
0.160 |
1.6 |
|
|
65/0.254 |
ABC |
0.254 |
3.94 |
|
|
1/0.4 |
ATC |
0.4 |
0.9 |
|
|
1/0.5 |
ATC |
0.5 |
1.8 |
Packing :
As per customer requirement.
Application :
Internal Wiring of appliances & electronics.
